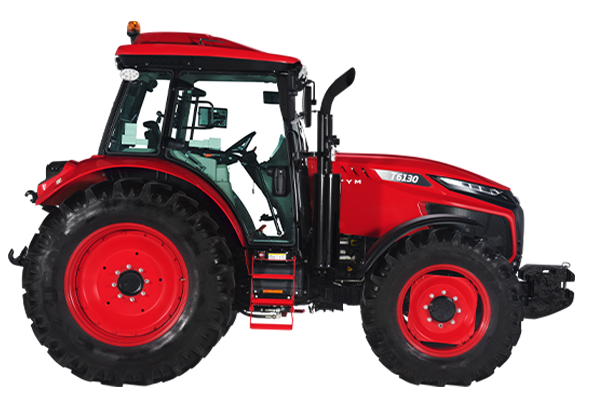

T6130
Series 6 , Utility Tractors

Engine manufacturer
127 hp
Engine power
3747 kg
Hitch lift capacity
The premium utility tractor redefining excellence through innovation

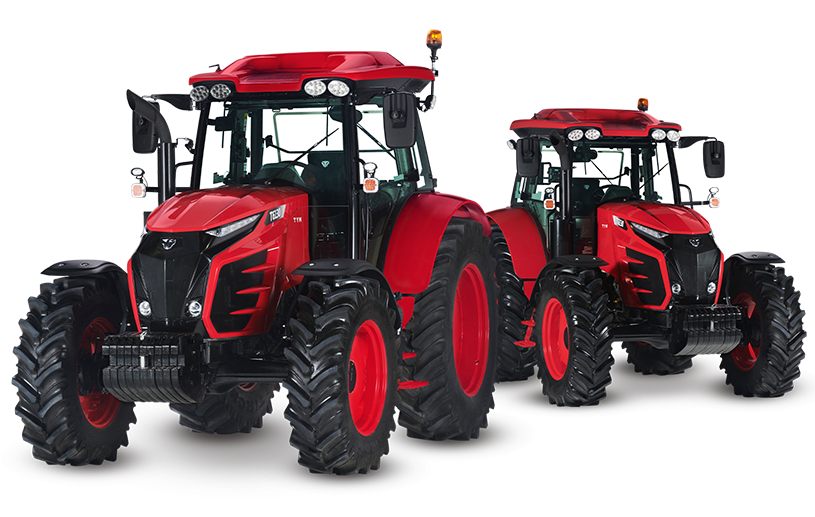

Meet TYM's flagship tractor, the T6130. This utility tractor seamlessly merges sophisticated design with powerful performance, incorporating cutting-edge smart technology and premium features to provide the ultimate tractor experience.
*The current model is for illustrative purposes only. Available products, features, and specifications may vary depending on your region.

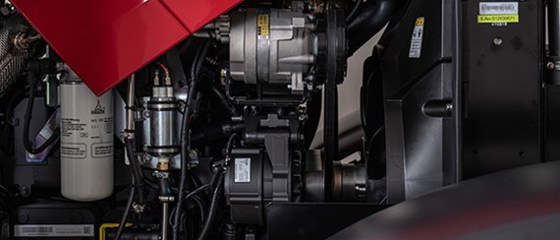

High-powered Deutz engine
The T6130 is fitted with the TCD 3.6 L4, Deutz Common Rail Engine with Bosch's advanced electronic hydraulic control system, which excels in high-intensity tasks. This engine delivers exceptional power and torque at a lower rpm, promoting durability and productivity over a longer lifespan.

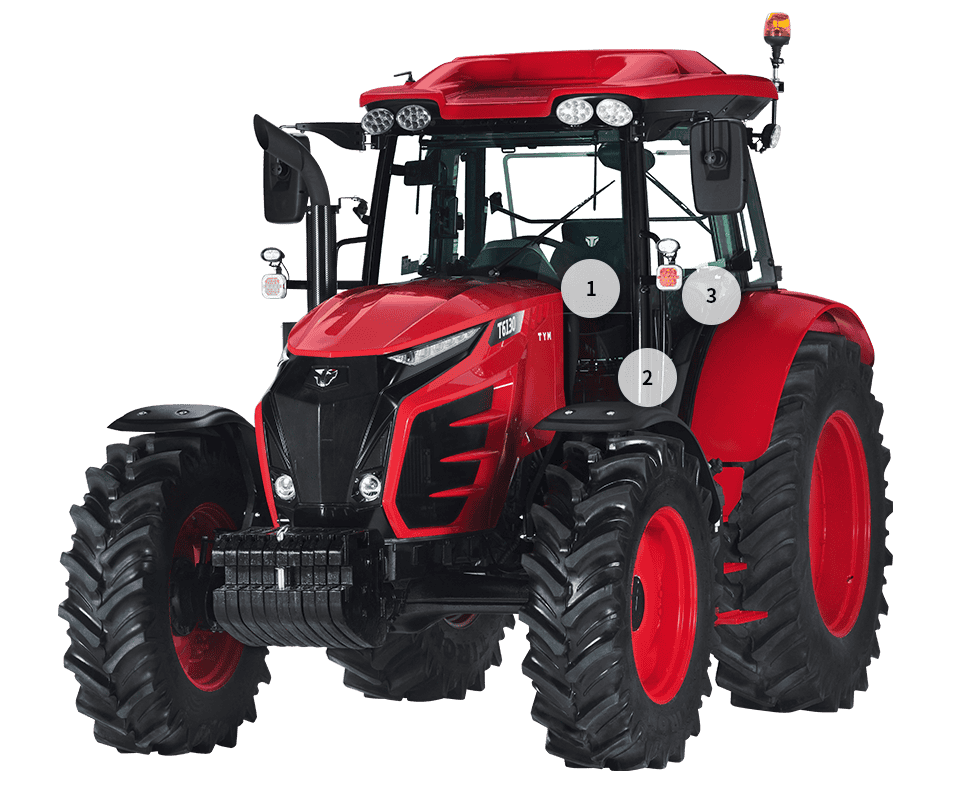

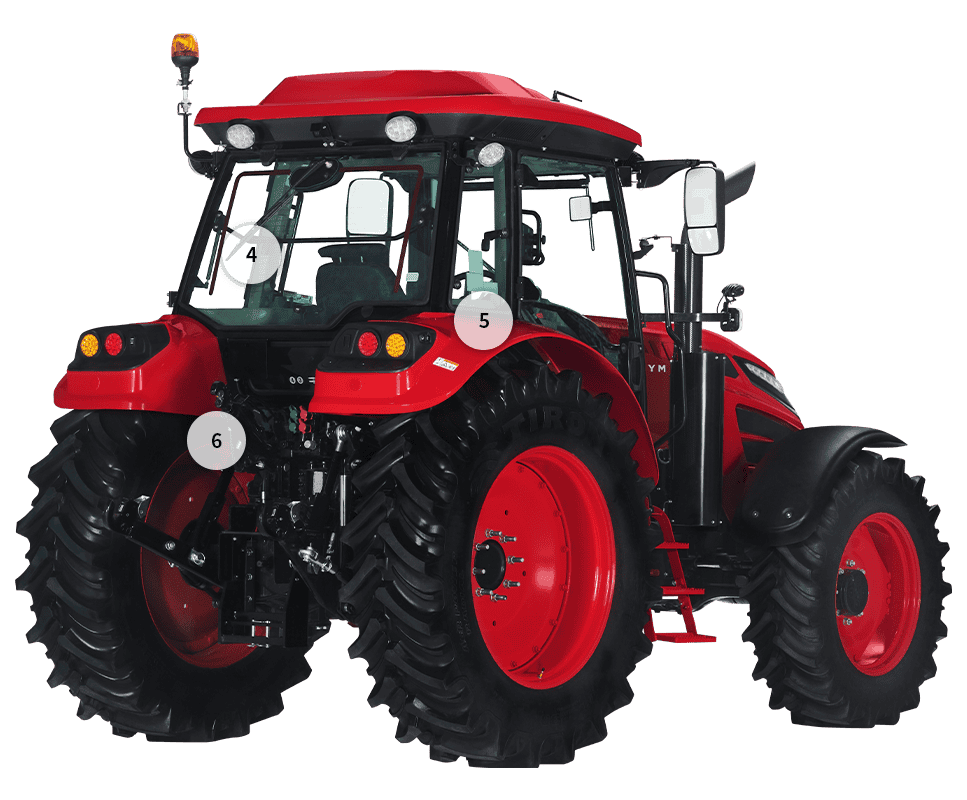

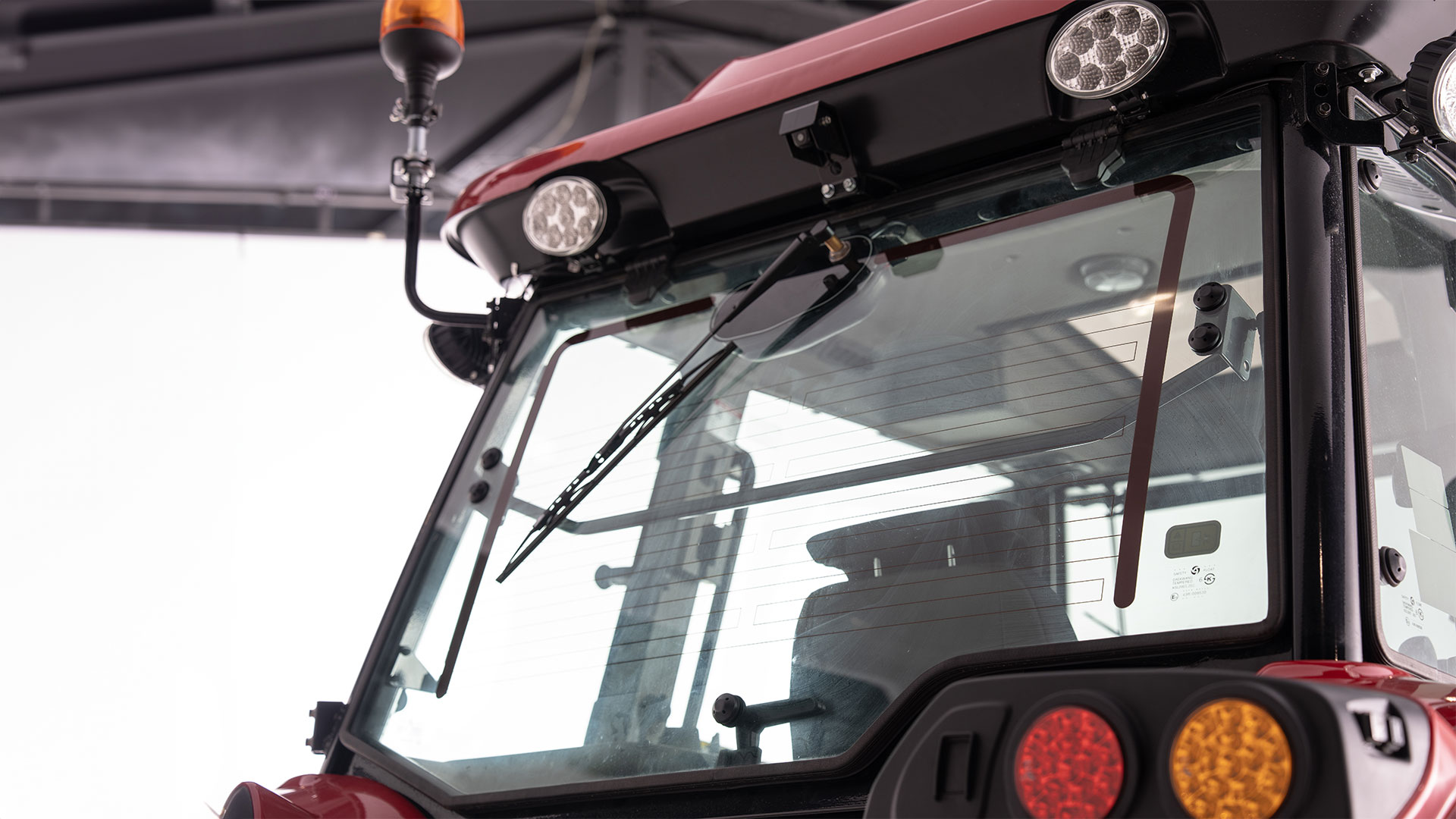

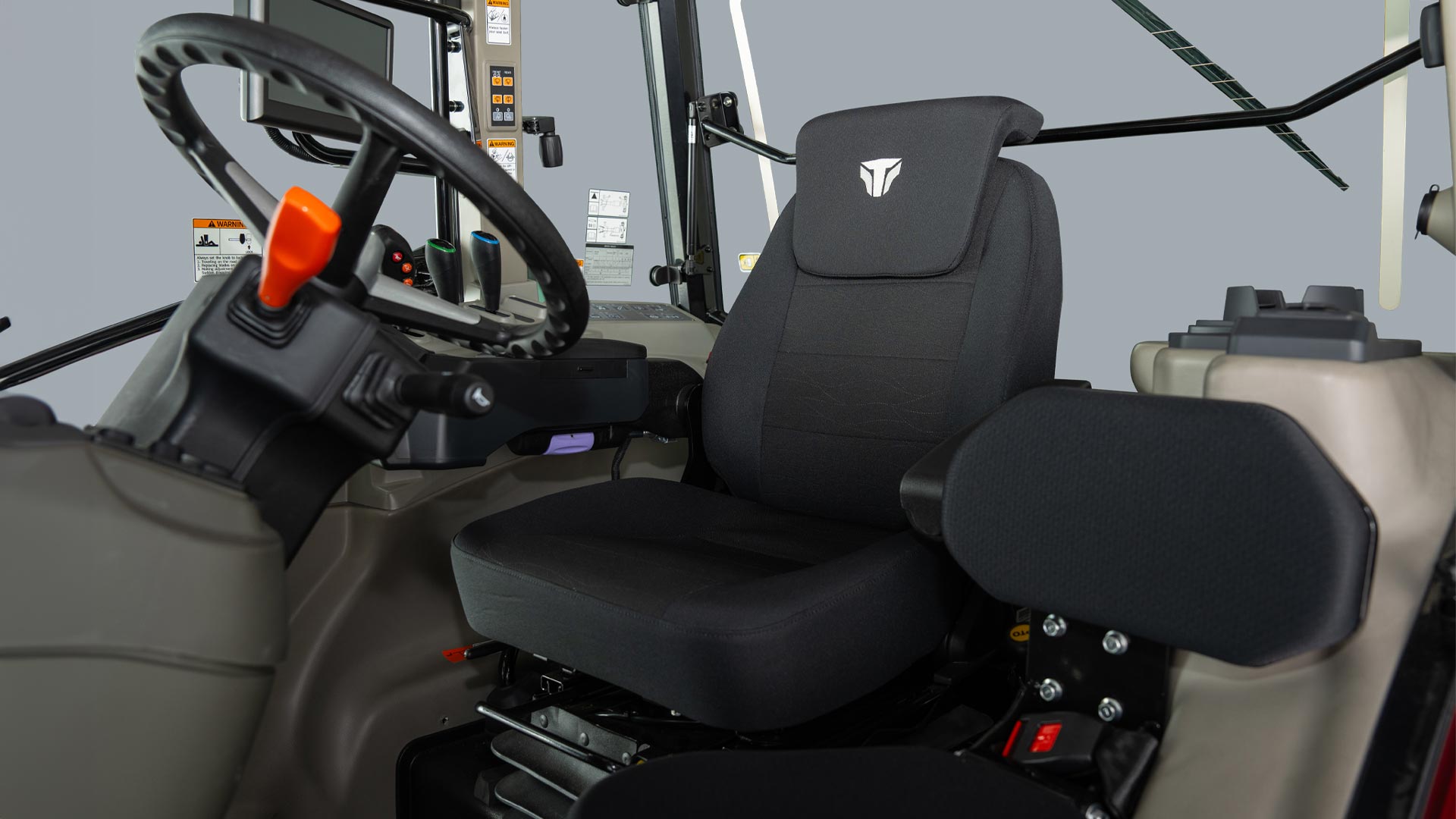

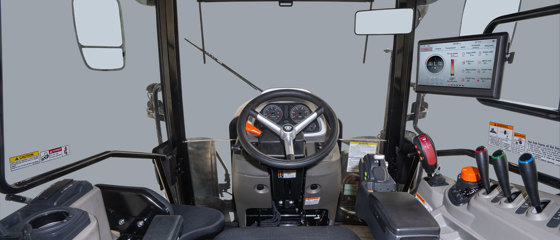

Premium cabin

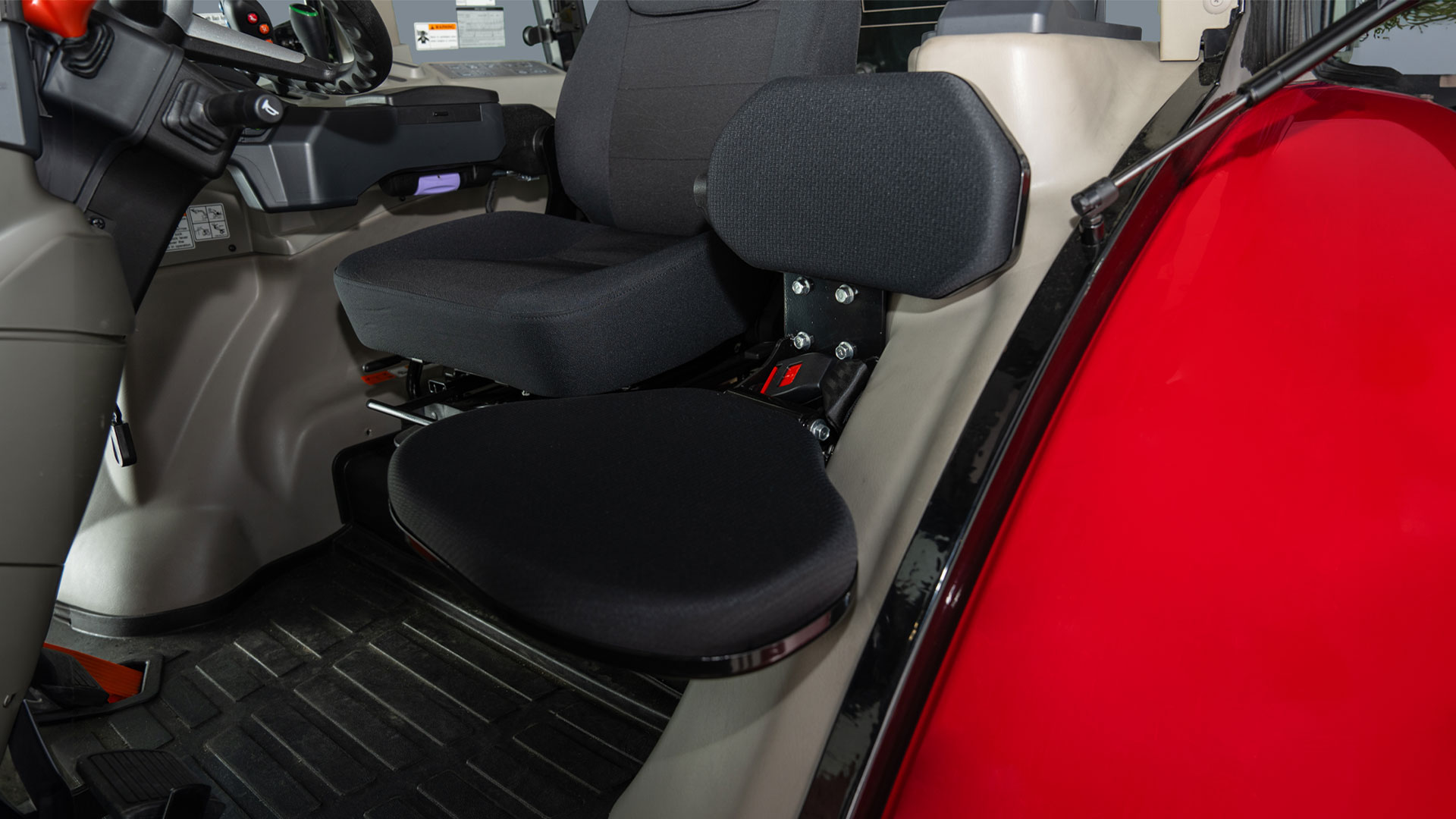

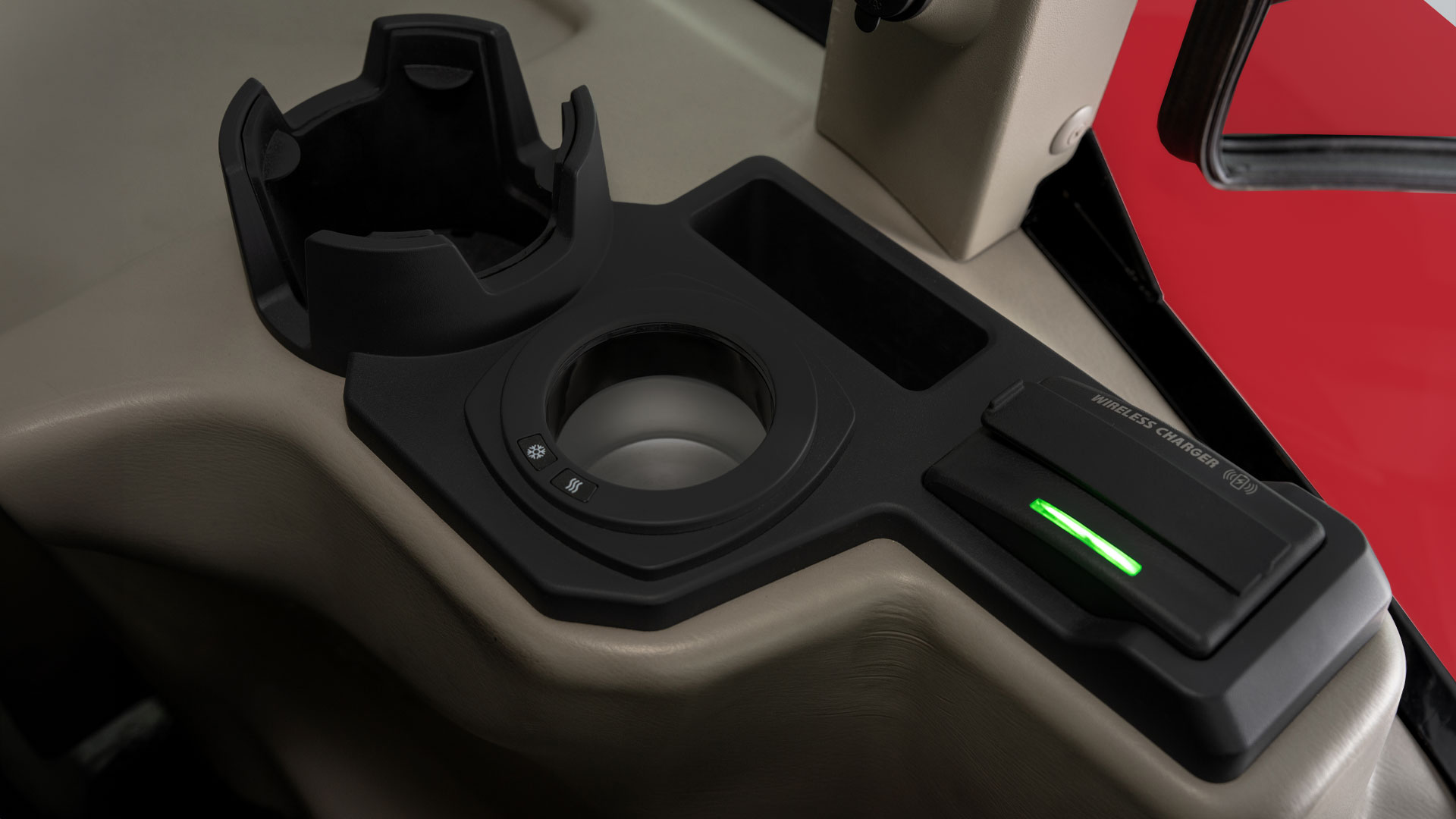

Enjoy panoramic views, easy entry and exit through both side doors, and a suite of premium cabin amenities that boost productivity while prioritizing safety and well-being.

Durable, shock-absorbing axle configuration
The front axle of the T6130 excels in tough conditions, consistently offering robust load-bearing and long-lasting outboard planetary gear design and a limited-slip differential. The rugged front axle features a 4 Wheel Auto mode and generous 47-degree steering angle for precise control, maneuverability, and reduced tire wear.

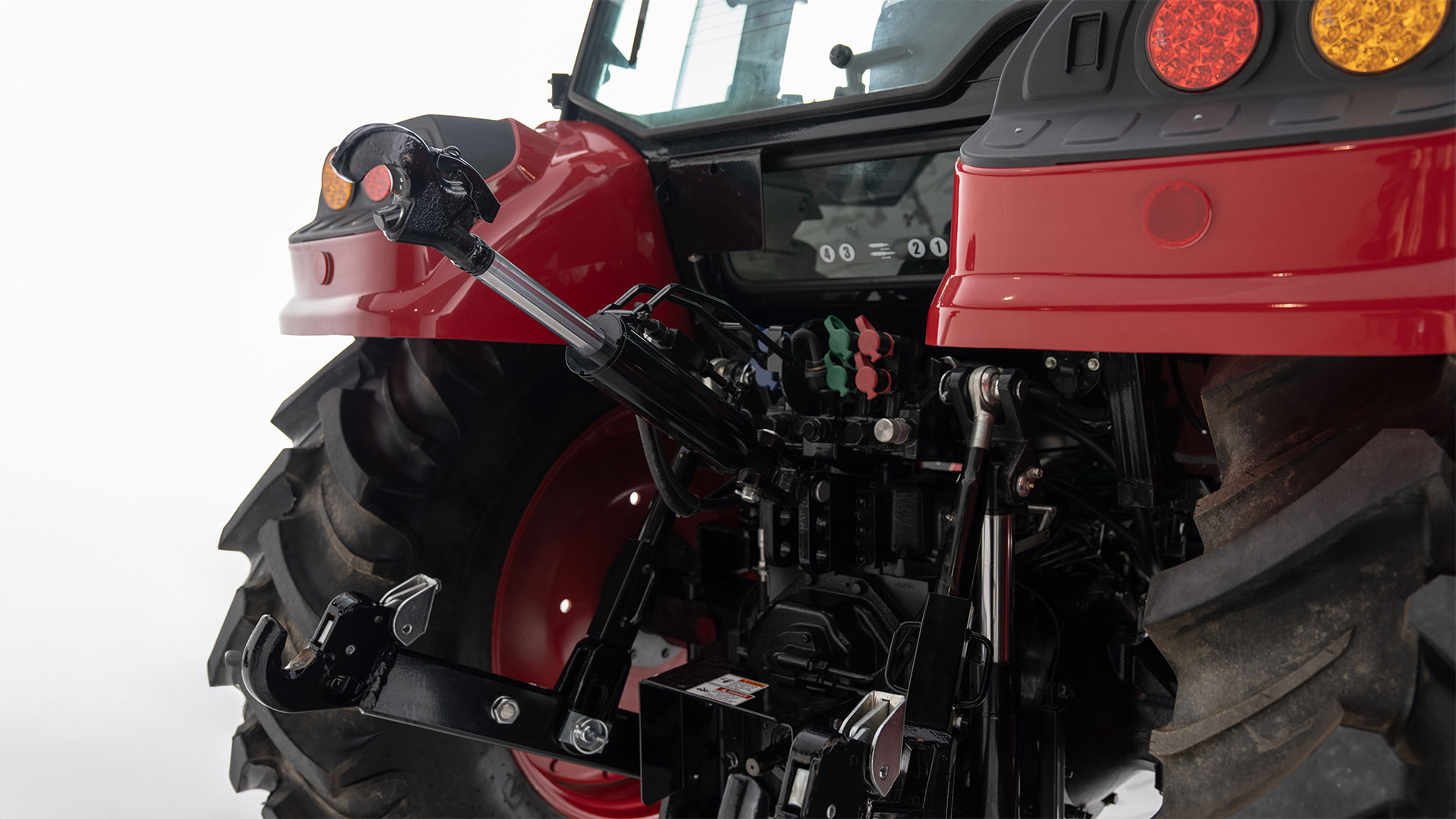

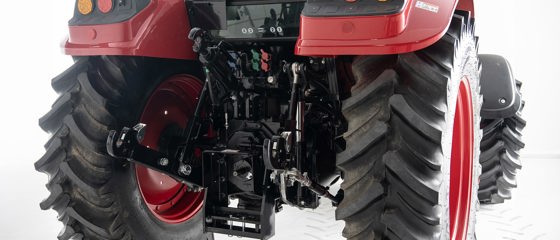

High-capacity 3-point hitch
Equipped with a high-capacity 3-point hitch and designed to handle heavy loads up to 8,262 lb. or a variety of attachments, this tractor ensures secure and optimal performance for your agricultural tools. The high-capacity heavy-duty category 2 hitch allows you to quickly connect various attachments.

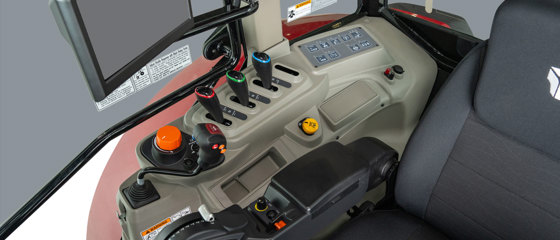

Operational features
These levers and controls simplify tasks like gear shifting and implement control, ensuring efficiency and ease of operation.

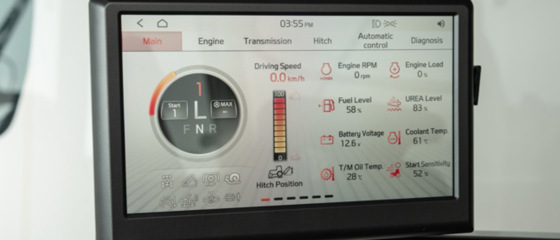

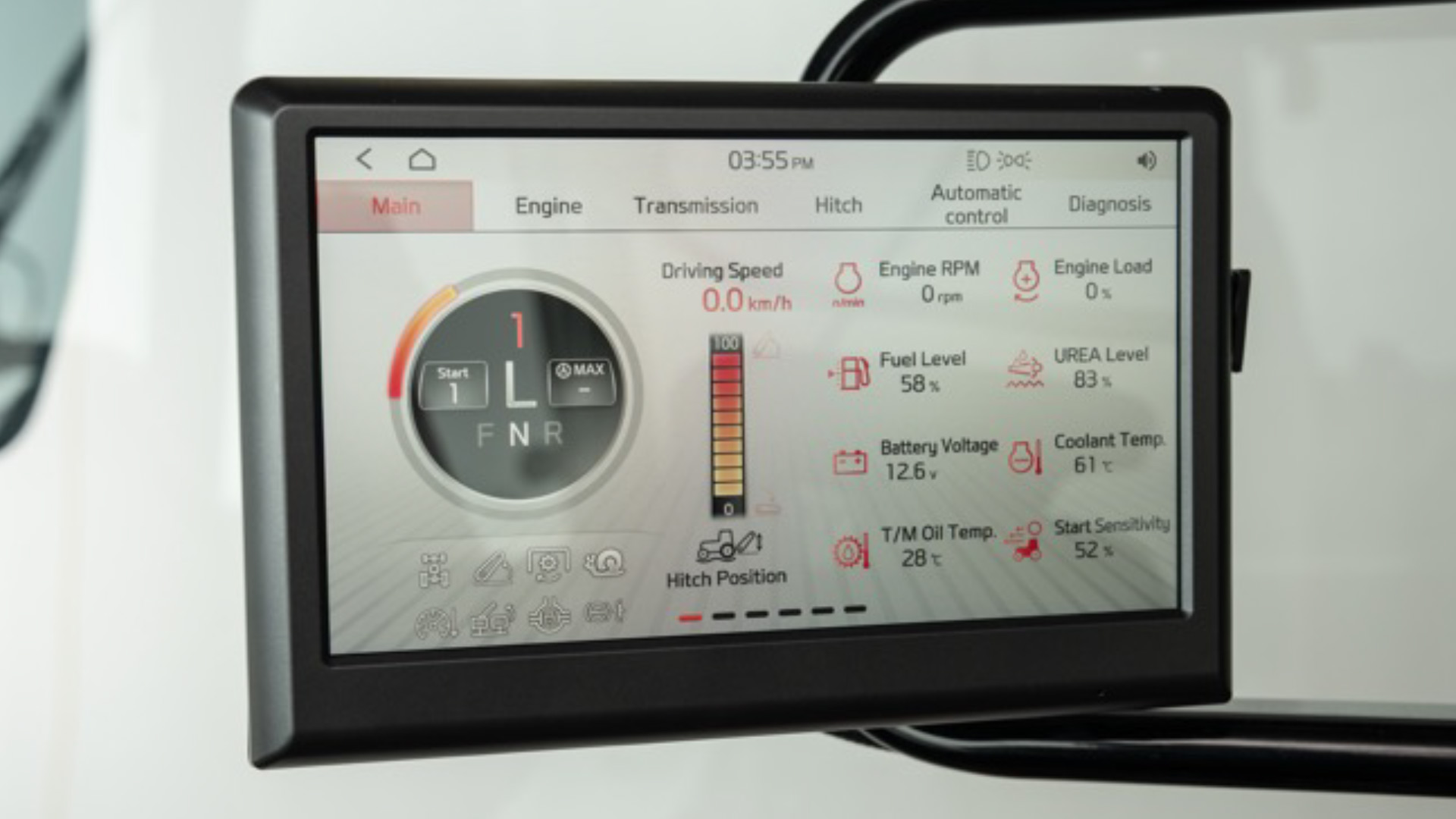

10.1-inch touchscreen monitor
The 10.1-inch Bluetooth-enabled monitor gives you easy access to the tractor’s control center. In-depth monitoring pages allow you to focus on the engine output, transmission, and 3-point hitch settings, along with diagnostics alerts. The large display is perfect for viewing front- and rear-mounted cameras (rear comes standard).

Smart key with remote start and control
The T6130 smart key enables remote engine starts, hitch control, and push-button start/stop for added convenience.

A productive and dynamic force in action
The T6130 tractor boasts a remarkably powerful engine and delivers top-of-the-line performance that exceeds expectations. With intuitive controls, innovative technology, and premium features, the T6130 redefines utility tractors.






Designed for applications in and around your property
Introducing the T6130, your ultimate power source. This utility tractor offers higher capacity for peak performance with minimal fuel consumption. Not only is it eco-friendly, it also features advanced technology for low maintenance, ensuring uninterrupted productivity.
Perfect for farming and livestock management, the T6130 features an automatic PTO with lift and lower functions to maintain stability and provide a smooth ride.

Material Handling
Maximized front and hitch lift capabilities allow you to carry large volumes of material at once, minimizing the number of trips and promoting operational efficiency.

Land Clearing & Forestry
From grappling dead plants to removing uprooted tree stumps, this tractor can maintain your land or clear it for your next big project.

Construction
Use this tractor as your primary piece of machinery for an entire project, or in tandem with other construction equipment to build your vision.

Arable Farming
Equipped with versatile functionality in a heavy-duty design, this tractor promotes productivity from soil preparation and seeding to irrigation and harvest.

| Tractors Model | T6130 ![]() | T115 ![]() | T78 ![]() |
Engine manufacturer | Deutz TCD3.6L4 | Deutz TCD 3.6L4 | Deutz TCD2.9L4 |
Engine power | 127 hp | 95 kW | 111 hp | 83 kW | 74 hp | 55.4 kW |
Rated engine speed | 2200 rpm | 2200 rpm | 2200 rpm |
Displacement | 3621 cc | 221 cu. in. | 3621 cc | 221 cu. in. | 2925 cc | 178.5 cu. in. |
No. of speeds | F36 × R36 | F32 × R32 w/Creep | F16 × R16 (Creep interlock) |
Hitch lift capacity | 3747 kg | 8260.7 lb | 3309 kg | 7295 lb | 2338 kg | 5154.4 lb |
PTO rear | 540/540E/1000 rpm (Reversible shaft) | 540/540E/1000 rpm (Reversible shaft) | 540/540E rpm |
Fuel tank | 190 L | 50.2 gal | 110 L | 29.1 gal | 90 L | 23.8 gal |
Overall length with 3-point hitch | 4490 mm | 176.8 in. | 4470 mm | 176 in. | 4269 mm | 168.0 in. |
Overall width | 2270 mm | 88.4 in. | 2270 mm | 89.4 in. | 2345 mm | 92.3 in. |
Wheelbase | 2590 mm | 102 in. | 2360 mm | 92.9 in. | 2188 mm | 86.1 in. |
Height to top of cabin | 2940 mm | 115.7 in. | 2740 mm | 107.9 in. | 2664 mm | 104.9 in. |
Min. ground clearance | 410 mm | 16.1 in. | 460 mm | 18.1 in. | 467 mm | 18.4 in. |
Weight with cab | 4545 kg | 10020 lb | 4130 kg | 9105.1 lb | 3091kg | 6814.5 lb |
R1 Agricultural - Front | 380/85 R28 | 13.6-24 | 11.2-24 8PR |
R1 Agricultural - Rear | 460/85 R38 | 18.4-34 | 16.9-30 8PR |
| Download | Technical Brochure | Technical Brochure | Technical Brochure |
